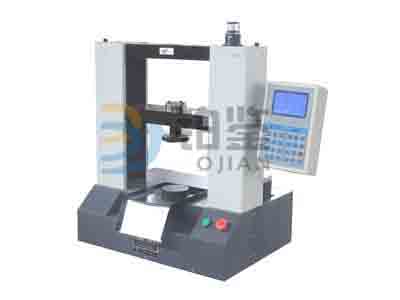

Product name：Iron ore pellet pressure tester
Product model：
Product range：
Immediate consultation
Online Message
Test space: 850mm.
For metallurgy, mineral, chemical pellets (particles), and other material mechanical performance test and analysis research, meet the GB/T14201-93 iron ore pellets compressive strength measuring method "requirement, used to measure molten iron ore pellet burning compressive strength.The machine also can be used to other metals, non-metallic and composite material mechanics performance test and analysis, is widely used in casting, metallurgy, mining and other industries, can be automatically calculated maximum strength, rupture strength test, automatic return to test, and test data, test results of automatic printing.The machine adopts the miniature dc servo motor as power supply, LCD single-chip microcomputer real-time display the test data and test status, control of the testing process is accomplished by single chip microcomputer automatic control.
Maximum test force of the sensor: 50000N
Model: BJQY-S
Precise measurement range: 1% ~ 100%
The accuracy of test force measurement: + 1%
Displacement speed control: 1 ~ 300mm/min adjustment.
Test space: 0 ~ 300mm
Test space width: 380mm
Power supply power: 750W, 220V, 50Hz
The size of the iron ore pellet pressure tester is 560 x 420 x 1580mm.
