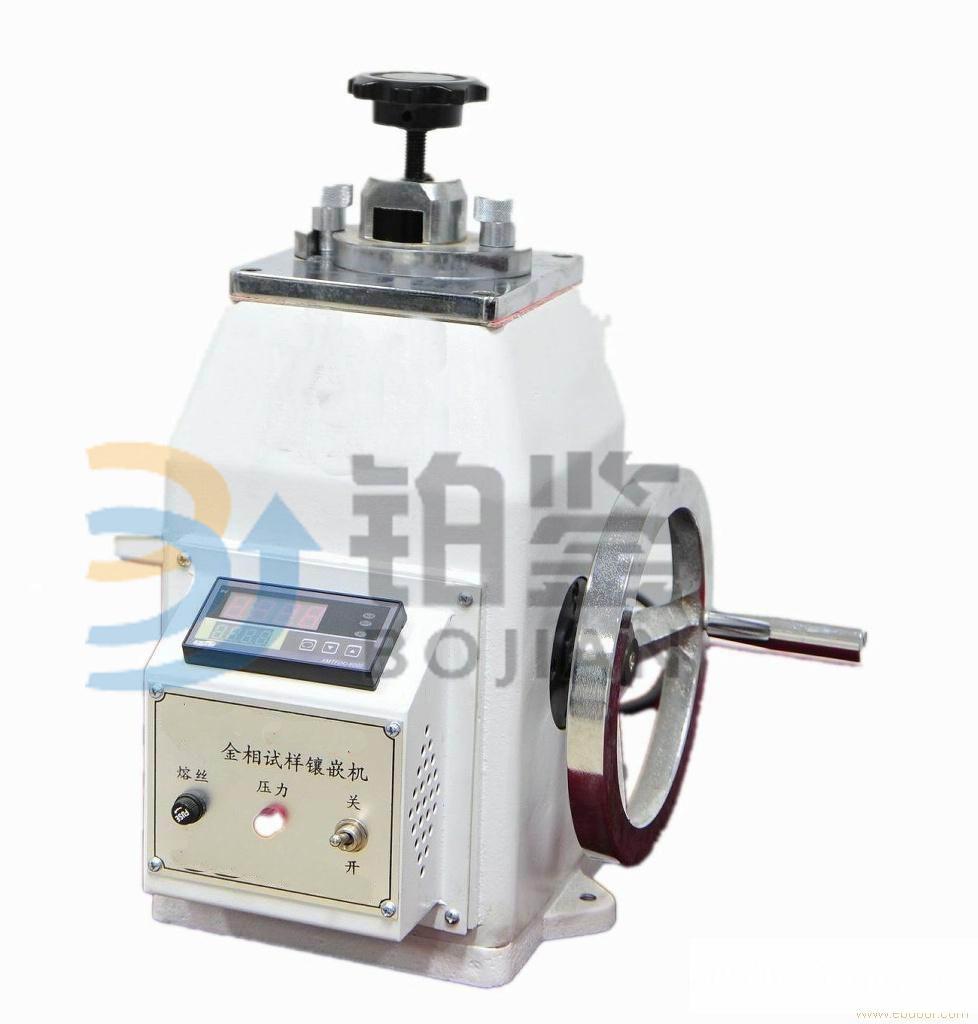

Product name：Metallographic sample Mosaic machine.
Product model：BJXQ-30
Product range：?30×15mm;
Immediate consultation
Online Message
The metallographic specimen inlaying machine (hereinafter referred to as the inlaying machine) is suitable for the thermosetting plastic suppression of small metallographic samples that are not plastic or easy to take.After forming, it is convenient to conduct sample grinding and polishing, which is also conducive to microstructure determination under metallographic microscope.
This machine is a mechanic inlaying machine, rotating the body outside the handwheel, make through a pair of bevel gear driven by the screw pressing sample move up and down the die in the die set inside, hot plastic because with the set of samples of samples under the condition of heating forming.The forming pressure in the sample preparation process is automatically compensated by the springs fixed in the collective and the pressure of the sample pressure can be indicated by the signal lamp.
This Mosaic machine configuration digital temperature controller, so as to realize the real-time temperature display and temperature independent setting, configuration timer, and realizes the sample preparation of half automation, greatly improving the work efficiency.For 8-10 minutes of each Mosaic, the ideal specimen of smooth glass can be obtained.
1. Sample to suppress specifications: ? 30 x 15 mm;
2. Heater specification: 650W 220V.
3. The temperature adjusting range: 100-180 ℃
4. Control power supply: the voltage fluctuation is not greater than or minus 15%,220V,50Hz.
5. External dimensions: about 340X270X400mm.
6. Net weight: about 33KG.
