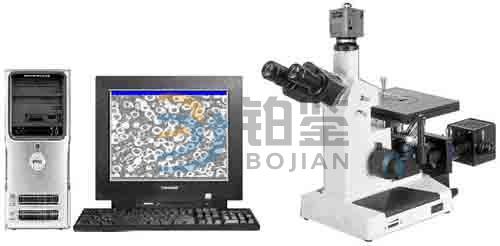

Product name：Metallographic analyzer
Product model：BJ4XC-W
Product range：10X/Φ18mm
Immediate consultation
Online Message
The metallographic analyzer is used to identify and analyze the composite structure of various metals and alloy materials, and it is widely used in the factory or laboratory for the identification of casting quality.Analysis of metallographic structure after raw material inspection or material treatment;And some surface phenomena such as surface spraying are studied.It is the metallographic analysis of steel, nonferrous metal materials, castings and coatings.Geological facies analysis;And industrial areas of compounds, ceramics, such as an effective means of microscopic study, metallography and material studies the essential instrument of organization structure, also widely used in biology, medicine and education, etc.
A growing body of research has not meet the conventional metallographic microscopy and photographic method, the microscopic imaging input computer, by the microprocessor to make all kinds of post-processing images, are synchronous in today's world of new technology in the field of microsurgery.Metallographic microscope, image access the high resolution CCD camera system, by a computer to deal with images, edit, save and output (such as print, etc.) or into the multimedia system and E-mail address.
If further access to the image analysis computer operating system, can be further to study and analysis of metallographic atlas, or on the image to be used as precise measuring standard, and the multi-function image morphological analysis, statistics and output by the report.
Automatic metallographic analysis system 2012 is engaged in metallographic examination unit or individual with the development of a set of computer software system, its basic principle is: with hardware, such as video capture card or digital camera, and collected metallographic images of metallographic microscope, again to the image processing and analysis of relevant test results are obtained.
Main machine: 4XC inverted metallurgical microscope mainframe.
Observers tube: hinged binoculars cone, 30 ° oblique;
Three eyepiece tube, pupil distance and diopter can be adjusted.
Eyepiece: 10X/ m2 18mm flat field eyepiece;
Objective: four - hole objective converter.
Flat field achromatic objective: 10X/0.25 effective working distance: 8.8mm.
20X/0.4 effective working distance: 3.75mm.
Effective working distance: 2.69mm.
Effective working distance: 0.44mm.
Focusing mechanism: coarse and micro - coaxial focusing and fine tuning grid value: 0.002mm.
Stroke (from the surface of the carrier surface) : 30mm.
Platform: table size: 200mm x 152mm.
The platform pressure plate one.
Small platform: small hole, big hole each.
Mobile range: 15mm x 15mm.
Illumination: halogen lamp 20W/6V, center, brightness continuously adjustable.
Color filter: built-in rotating disc (green, blue, yellow, grey, and glass)
Attachment: objective micrometer (accuracy: 0.01mm)
0.4 X adaptation
Digital video camera 1.3 million, 3 million, 5 million pixels optional.
Metallographic automatic analysis system.
