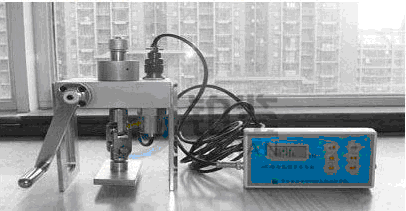

Product name：On-site drawing instrument for external wall insulation material
Product model：
Product range：: 0 ~ 10kN
Immediate consultation
Online Message
1. The strain tension sensor is adopted to overcome the shortcomings of the detection results in the same products that are used to measure oil pressure in the market, and the test results are fast and accurate.Small size, light weight, easy to detect on the spot, the machine adopts the integrated design, the structure is compact and reasonable, the weight is only 4Kg, the host and the display instrument are placed in the carry-on bag, which is convenient to carry.
2. Easy to operate and easy to use.Site drawing instrument USES the optimization design, overcome the similar products on the market volume weight, each test must be cumbersome installation, each test should note the shortcomings such as oil, users need oiling, no installation, can be out of the test, and no leakage occurs.
3. High precision measuring force sensor and high precision intelligent instrument are used to measure fast and accurate, the system performance is stable and reliable, and the on-site drawing instrument has single key menu type prompt operation.Keyboard setting parameters, record viewing and printing functions, easy to operate.
JG149-2003 expanded polystyrene board thin plastering external thermal insulation system.
JGJ1101997 "inspection of construction engineering tile adhesive strength"
JG158-2004 "rubber powder polystyrene granule external wall external thermal insulation system".
1. Measuring range: 0 ~ 10kN.
2. Field drawing instrument bracket span: 140 * 62mm.
3. Machine weight: 4Kg.
4. Accuracy: plus or minus 1.5%.
