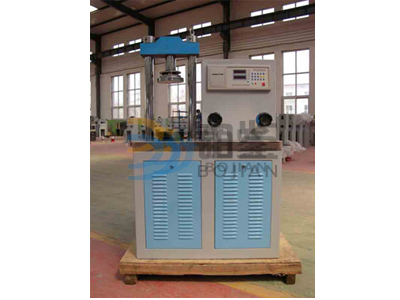

The digital display electrohydraulic pressure testing machine is used for the test of compressive strength of building materials such as foam, aerated brick, aerated concrete specimen and cement, cement sand and red brick.

Hydraulic loading, electronic measurement, load digital display, loading rate display, maximum load maintenance, overload protection and power outage data retention.

The digital display electro hydraulic pressure tester is used for compressive strength test of foam, aerated brick, aerated concrete and cement, mortar and red brick.

The digital hydraulic pressure testing machine uses hydraulic loading, electronic force measurement, with the functions of load digital display, loading rate display, maximum load maintenance, overload protection and power break data retention.

1、最大試驗力：300KN

2、示值相對誤差：±1%

3、液壓泵額定壓力：25MPa

4、抗折輥直徑：φ30mm

5、上下抗折輥間最大間距：165mm

6、兩上抗折輥間中心距：150mm

7、兩下扛折輥間中心距：450mm

8、壓力試驗機(jī)承壓板尺寸：φ155mm

9、上下壓板間最大間距：230mm

10、活塞直徑和最大行程：φ125mm×80mm

11、電動機(jī)功率：三相0.75 KW

12、外型尺寸（長×寬×高）：約850×600×1340mm

13、本數(shù)顯式電液壓力試驗機(jī)凈重：約400Kg
