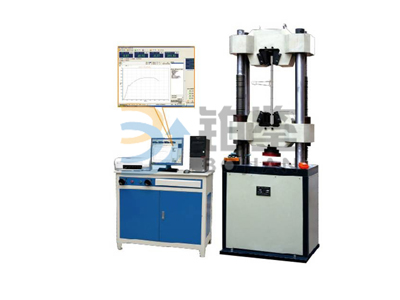

Product name：Microcomputer screen display bolt tension testing machine
Product model：
Product range：600kN
Immediate consultation
Online Message
It is mainly used to test the wedge load tension test, tension test, guarantee load test and elongation rate of bolt, screw and stud.The pillar structure, the use of hydraulic load, the computer shows the test result, convenient operation, accurate and reliable test readings of general steel and other metal materials can do tensile, compression, bending and shear test, can also do general materials, such as plastic, cement and concrete compression and bending test.
GB/T3098.1-2002 fasteners mechanical properties bolts, screws and studs.
GB/T3159-2008 "hydraulic universal testing machine"
GB/T228-2002 "methods for tensile testing of metallic materials at room temperature".
GB/T 7314-2005, "compression test method for metallic materials at room temperature".
GB/T 232-2010 "test method for bending metal materials"
The hydraulic oil in the tank goes through the motor to drive the high pressure gear pump into the oil road. It flows through the one-way valve, the high pressure 10 mu oil filter, the pressure difference valve group and the oil delivery valve to enter the oil cylinder. By manually controlling the opening size of the feeding valve, the flow rate into the cylinder can be controlled, and the loading requirements can be satisfied. After the test is completed, unload the return valve and return the oil cylinder.
1. Maximum test force kN 600
2. The range of test force measurement kN 2%-100%FS
The value of the relative value of the error is less than or equal to + 1% in 3, the test force
4, the resolution of test force is 0.01kN.
5. Displacement measurement resolution mm 0.01
6. The precision of deformation measurement mm 0.01
7, maximum tensile test space mm 700
8. Maximum compression space mm 600
9. Piston stroke mm 200
10, the clamp diameter of the round specimen is mm 13-, 13- or 60 13-.
11. The thickness of the flat sample jaws is mm 0-40
12. The maximum clamping width of flat specimen is mm 70 or 125
13. The size of the press plate is mm 204 x 204
14, the maximum distance between two points in the bending test is mm 450
15. The two pillar of the stretch space is mm 465.
16, bending and rolling width mm 140
17, bending and rolling diameter mm diameter 40
18. Maximum bending degree mm 150
19. The diameter of the shear specimen is mm 10
20, the maximum piston speed is about 80 mm/min.
21, oil pump motor power kw 1.1
22, the upper and lower beams move the motor power kw 0.75.
23, clamping mode automatic / manual tightening.
24. The mainframe size mm is about 1160 x 850 x 2600
25. The size of the force cabinet is about 1120 * 700 * 950 mm.
26. The weight of the machine is about kg 3200
